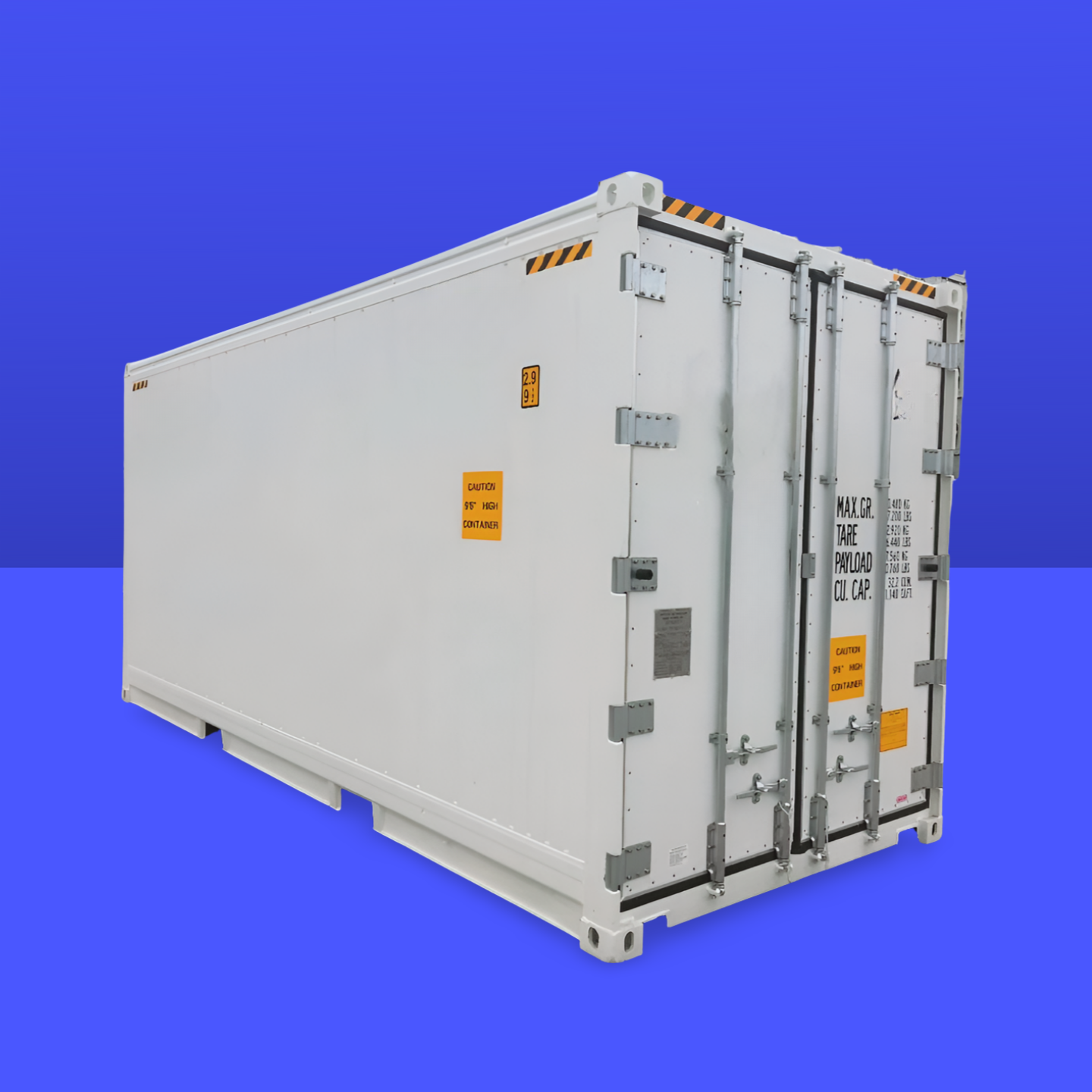

20 ft Insulated Container
Ideal for storage or transport when temperature and moisture control matter
Key Features
-
Built to ISO dimensions (approx. 6.06 m length × 2.44 m width × 2.90 m height external) for compatibility with standard transport and handling systems.
-

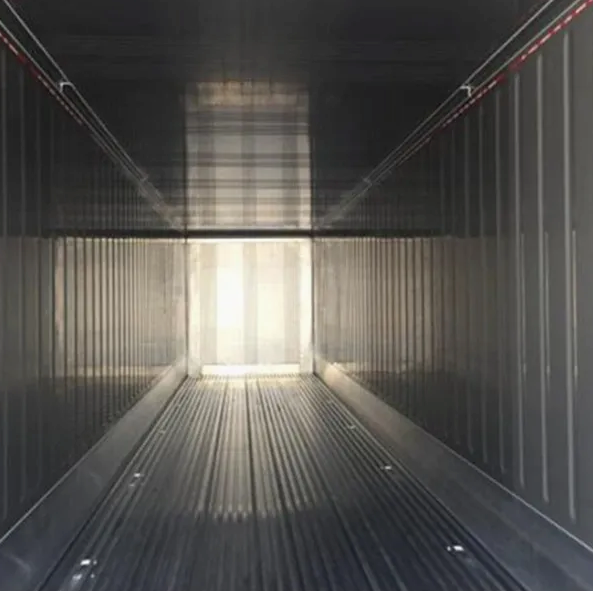

Interior is insulated with high-performance foam (≈ 75 mm to 100 mm thickness) including walls, roof and floor, to reduce condensation and help regulate internal temperature.
-
Durable steel construction (Corten or equivalent) with weather-resistant finish and full-door access for easy loading and unloading.
-
Usable interior volume of approximately 28 m³ to 33 m³ (depending on insulation and internal finish) — plenty of space for goods that require stable temperature/humidity.
-
Suitable for a wide range of applications: storing temperature-sensitive materials (fabrics, electronics, furniture), creating a moisture-controlled workshop or on-site storage unit, or adapting into a modular workspace with minimal further build-out.
Technical Specification (typical)
-
External Dimensions: ~6.06 m (L) × 2.44 m (W) × 2.90 m (H)
-
Internal Dimensions: ~5.43 m (L) × 2.28 m (W) × 2.26 m (H) (varies by insulation/flooring)
-
Internal Volume: ~28 m³ (for standard height) up to ~33 m³ (depending on model)
-
Construction: Steel structural frame, insulated walls/ceiling/floor, heavy-duty doors with locking bars, optional floor linings, vents or HVAC/ventilation options.
-
Payload / Load Capacity: Depending on base container specification, but strong enough for storage of heavy items — check exact availability. (For example, one specification lists max payload ~27,040 kg for similar 20ft insulated unit).
Benefits & Use-Cases
-
Temperature stability: The insulation helps maintain a more consistent internal climate compared to standard dry-containers—reducing peaks in heat or cold, and limiting condensation.
-
Versatility: Use for storage of sensitive goods (textiles, electronics, wine, documentation), for conversion into insulated workshop rooms or offices, or for on-site modular buildings.
-
Transport ready: Since it uses standard 20-foot ISO dimensions, it’s compatible with typical transport and placement infrastructure (truck-chassis, crane lifts, etc).
-
Durable: Heavy-duty steel construction ensures long lifespan even in outdoor or industrial locations.
Customization & Options
You may elect to add/modify:
-
Floor upgrade (reinforced flooring, pallet-rack mounting, sealed lining)
-
Doors/windows (side access, roll-up doors, personnel doors)
-
Ventilation or HVAC systems for active temperature/humidity control
-
Internal lining (e.g., stainless-steel, plastic laminate) for easier cleaning or specific use-cases
-
Internal partitioning, shelving, lighting & power
-
Exterior finish, branding or additional security features (lock-boxes, alarm wiring)
Important Considerations
-
Ensure proper site preparation: stable, level foundation; access for delivery crane/truck; drainage if outdoor installation.
-
While insulated, this is not a refrigerated (“reefer”) container with active cooling/heating unless specified — if you require strict temperature control (e.g., for food/pharma), verify technical spec.
-
Transport and placement costs will vary depending on local site conditions, access, permits (especially in urban areas).
-
If converted for occupancy (office/workshop) or public use, check local building codes, insulation/fire-safety regulations and necessary approvals.
